Flexible Modular Nanoimprint Equipment
-
Offering type ?
PRODUCT:
Component or system, which is commercialized. It is available for ordering multiple pieces and liability is assumed by the provider/seller. Necessary certification of the product was obtained (e.g. CE certification). The product sheet and/or conditions of use are defined.
PROTOTYPE:
Component or system, which has been successfully tested under real or real-like conditions. The prototype is not commercialized as the main purpose is to use it for demonstration and experimentation, including user and market acceptance.
TECHNICAL SERVICE:
Tools and processes and its combination, which are necessary to prepare and test prototypes or products.
- Pilot production
- Prototyping
-
Market
- AR/VR/MR
- Consumer Products
- Imagers & Displays
-
Manufacturing Pillar
- Roll-2-Plate
-
Technology
- UV-NIL replication
Offering Description

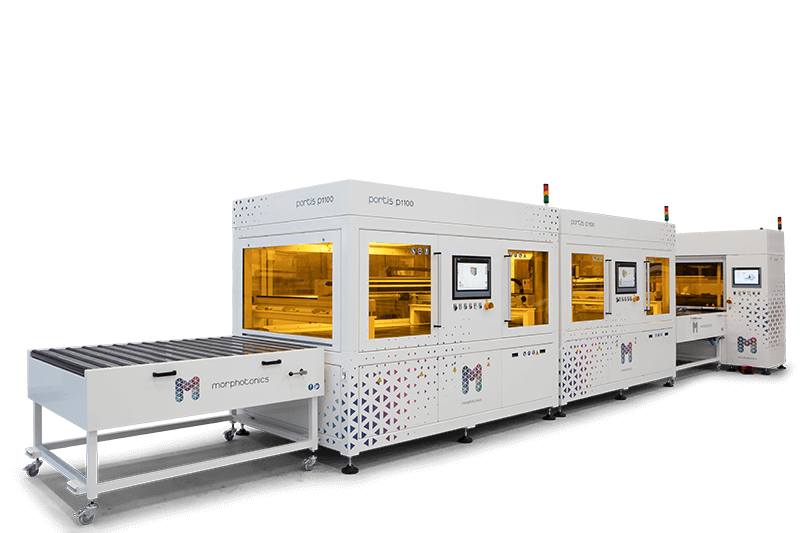

Portis is an adaptable nanoimprint platform designed as a bridge from prototyping to scalable industrial production. This system is ideal to explore new materials, develop processes, or produce smaller-volume batches. Its modular design means each line can be tailored with only the required functions, making it cost-efficient for early-stage development or specialty manufacturing.

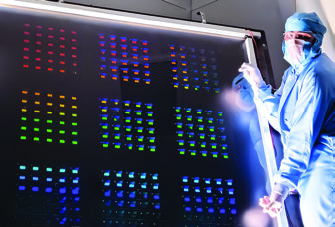

Portis maintains excellent uniformity, repeatability, and pattern fidelity, enabling accurate replication across a wide range of optical textures. It supports rigid and flexible substrates, including glass, polymers, and metals, and is available in 600 mm and 1100 mm width configurations.
Offering Specifications
- Substrate sizes:

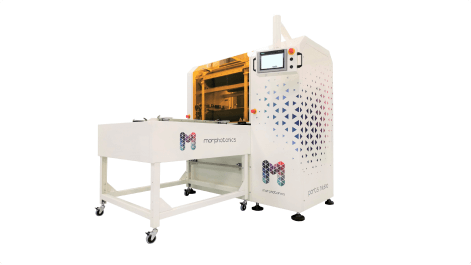

- Portis NIL 600: width up to 600 mm
- Portis NIL 1100: width up to 1100 mm
- Substrate thickness: 0.5 – 10 mm
- Materials: glass, polymer, metal
- Textures: 50 nm – 500 µm
- Modules: primer, coater, imprint (configurable)
- Applications: R&D, prototyping, pilot production, specialty optics
