Fully Automated Large-Area Nanoimprint Production Equipment
-
Offering type ?
PRODUCT:
Component or system, which is commercialized. It is available for ordering multiple pieces and liability is assumed by the provider/seller. Necessary certification of the product was obtained (e.g. CE certification). The product sheet and/or conditions of use are defined.
PROTOTYPE:
Component or system, which has been successfully tested under real or real-like conditions. The prototype is not commercialized as the main purpose is to use it for demonstration and experimentation, including user and market acceptance.
TECHNICAL SERVICE:
Tools and processes and its combination, which are necessary to prepare and test prototypes or products.
- Volume production
- Pilot production
-
Market
- Imagers & Displays
-
Manufacturing Pillar
- Roll-2-Plate
-
Technology
- UV-NIL replication
Offering Description

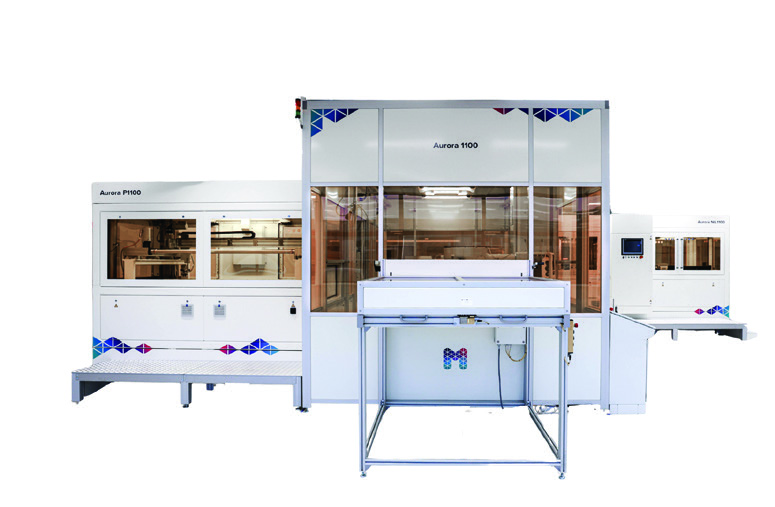

Aurora supports mass manufacturing of surface textures used in advanced displays, light-management layers, optical films, and functional coatings. With extremely high pattern fidelity, Aurora ensures precise replication of structures down to the tens-of-nanometer range while maintaining excellent throughput and process stability.
Aurora is engineered for continuous, industrial-scale production of nano- and microstructures on large rigid substrates. The system includes fully automated substrate handling, inline process control, and integrated curing, allowing reliable 24/7 operation.
Offering Specifications
- Process modules: primer, coater, nanoimprint, curing, automated handling
- Substrate size: up to Gen5 (1100 x 1300 mm²)
- Substrate thickness: 0.5 – 10 mm
- Substrate naterials: tigid & flexible (glass, polymer, metal)
- Structure: from 50 nm to 500 µm
- Applications: advanced displays, optical films, light-management layers, functional micro/nanotextures
