Micro-Optical Arrays
-
Offering type ?
PRODUCT:
Component or system, which is commercialized. It is available for ordering multiple pieces and liability is assumed by the provider/seller. Necessary certification of the product was obtained (e.g. CE certification). The product sheet and/or conditions of use are defined.
PROTOTYPE:
Component or system, which has been successfully tested under real or real-like conditions. The prototype is not commercialized as the main purpose is to use it for demonstration and experimentation, including user and market acceptance.
TECHNICAL SERVICE:
Tools and processes and its combination, which are necessary to prepare and test prototypes or products.
- Production
-
Market
- Healthcare & Life Sciences
-
Manufacturing Pillar
- Wafer-scale
-
Technology
- 3D printing
Offering Description

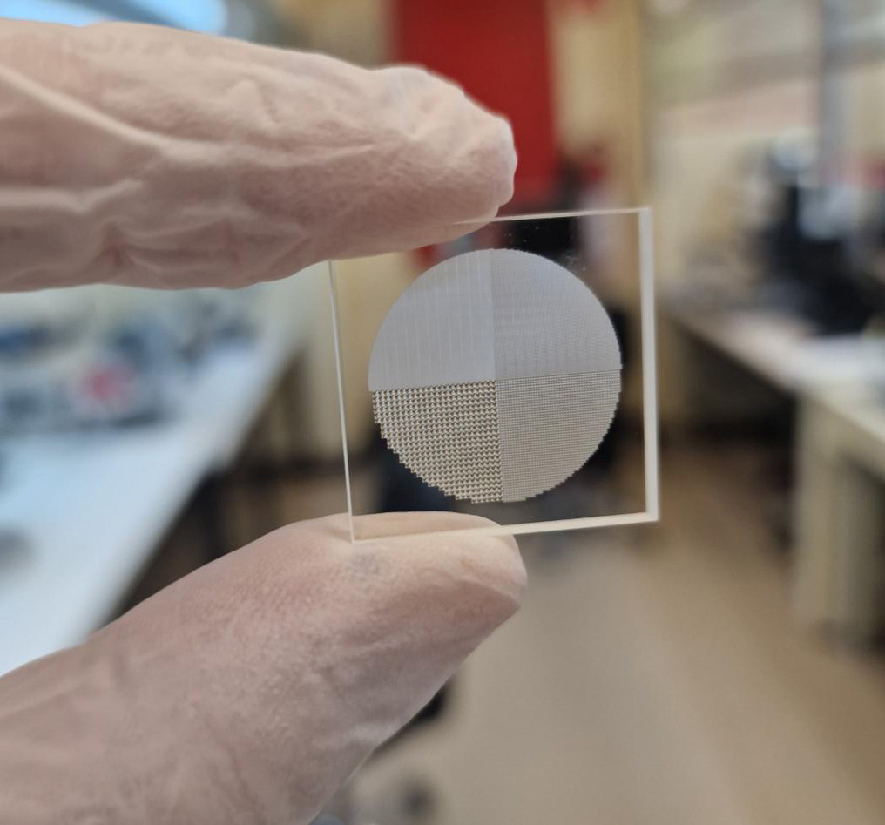

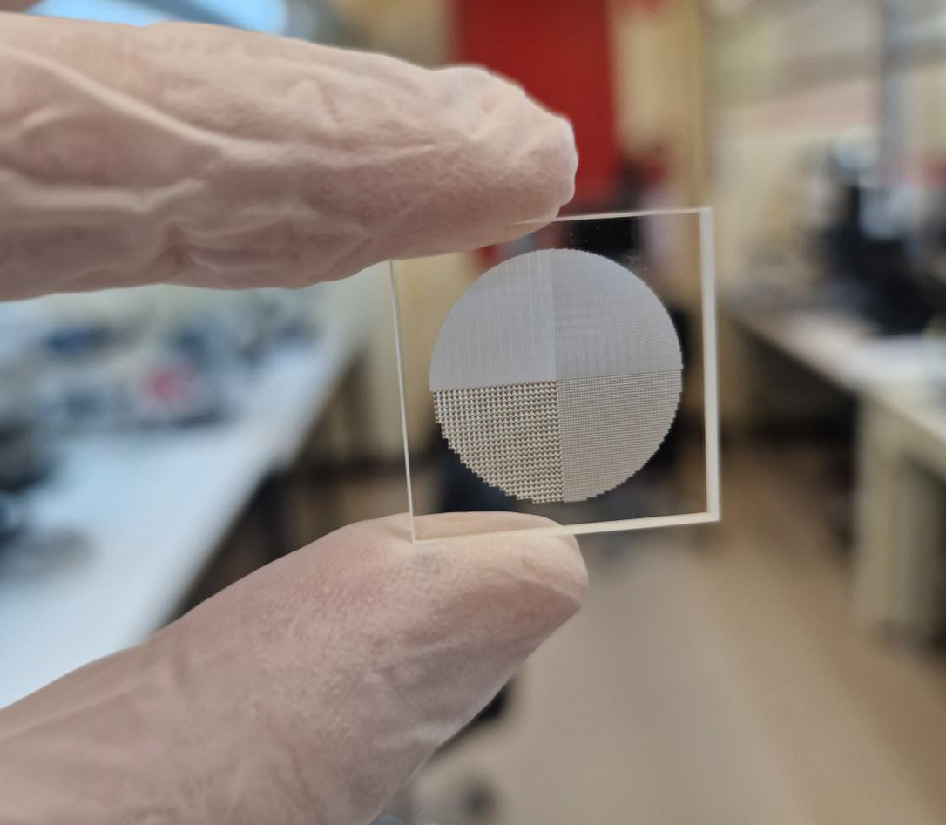

We develop micro-optical arrays with freeform, diffractive, segmented, or randomized unit cells using 2PP 3D printing. Our technology enables variable pitch, undercuts, and extreme aspect ratios, allowing optical functionalities that are not achievable with conventional fabrication methods.
Arrays can be printed directly on flat substrates such as glass, image sensors, or fiber tips with sub-micron alignment precision in x, y, and z. Highly transparent, low-fluorescence and biocompatible materials support applications in imaging, sensing, illumination, and medical technology.
Offering Specifications
- Array size: < 100 × 100 µm² up to 6″ wafer scale
- Element size: 3 µm to 2 mm
- Fill factor: up to 100%
- Optical surfaces: refractive, freeform, diffractive, randomized
- Surface roughness: < 10 nm RMS
- Shape accuracy: < diameter / 1000 (PTV)
- Aspect ratio: element height-to-diameter > 10
- Substrates: glass, image sensors, fiber tips, and other flat substrates
- Alignment precision: < 1 µm in x, y, and z
- Customization: variable pitch, custom geometries, undercuts
- Biocompatibility: suitable for medical and life-science applications
