Scalable Waveguide Manufacturing System for AI Glasses
-
Offering type ?
PRODUCT:
Component or system, which is commercialized. It is available for ordering multiple pieces and liability is assumed by the provider/seller. Necessary certification of the product was obtained (e.g. CE certification). The product sheet and/or conditions of use are defined.
PROTOTYPE:
Component or system, which has been successfully tested under real or real-like conditions. The prototype is not commercialized as the main purpose is to use it for demonstration and experimentation, including user and market acceptance.
TECHNICAL SERVICE:
Tools and processes and its combination, which are necessary to prepare and test prototypes or products.
- Volume production
- Equipment
-
Market
- AR/VR/MR
- Consumer Products
-
Manufacturing Pillar
- Roll-2-Plate
-
Technology
- UV-NIL replication
Offering Description

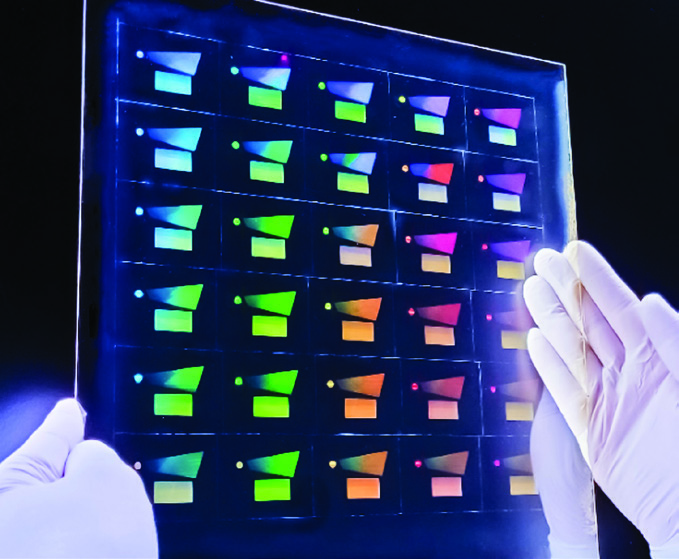

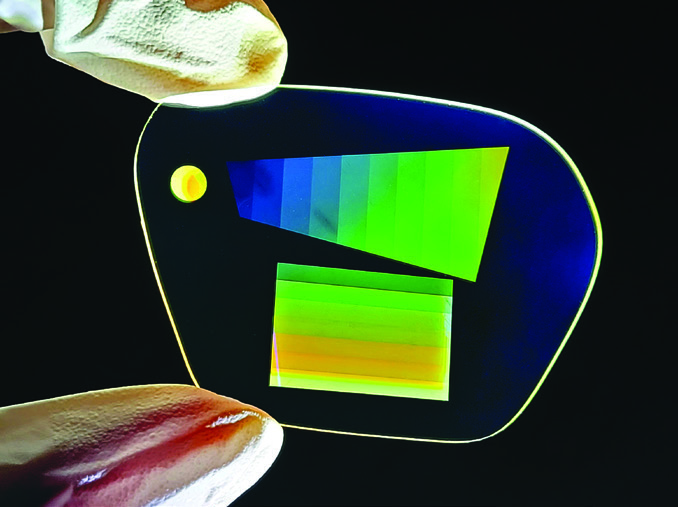

Cypris is ideal for mass-producing ARsmart-glasses, waveguides, and emerging AI eyewear. It delivers extremely precise alignment, multilayer processing, and reliable replication of complex optical structures required for high-performance AR waveguides.
Cypris integrates nanoimprint lithography with advanced inkjet deposition, multi-wafer carriers, automated substrate transport, and continuous quality control. Its scalable architecture ensures high yield and stable production at volumes suitable for consumer electronics markets.
Offering Specifications
- Annual capacity: up to 6M eyepieces (production cycle time as low as 3.5 minutes per substrate, depending on product texture)
- Structures: binary, blazed, slanted gratings, nanopillars & more
- Substrate sizes (multi-wafer handling with carrier)
- Handling sizes up to 650 x 620 mm
- Round wafer: 4 x 300 mm or 9 x 200 mm
- Squared glass capable (+ 25-50% area advantage)
- Substrate thickness: 0.1 – 10 mm
- Substrate materials: rigid & flexible (glass, polymer, SiC)
- Resin materials: Compatible with wide range of solvent/non-solvent resins
